METEOROLOGICAL DATA MONITORING
Table List Parameter
Parameter Measurement Range Accuracy
Wind speed 0- 75 m/s (168 mph) ±0.1 m/s (0.2 mph)
Wind direction 0 - 360° ±2°
Location :
Arthit
Instrument Name :

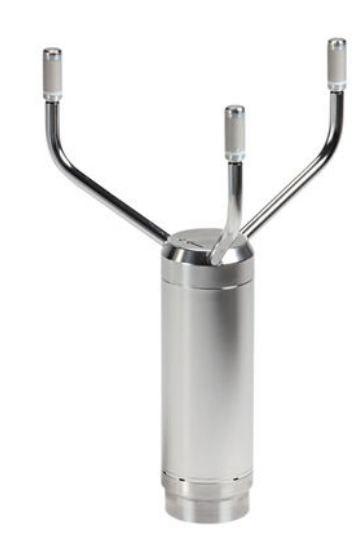

Wind Speed and Direction Sensor
Model / Type :
VAISALA-WMT703
Description :
It measures surface wind, which is one of the key parameters for meteorology and aviation.
Calibration Information :
Calibration Frequency :
Biannually
Calibration Standard Method :
The wind measurement was one-point calibrated at zero-wind condition. Additional functional test for wind speed and wind direction at flow of 7 m/s was performed
Calibration Certificate :
Calibration certificate of Wind Sensor .pdf
As of Certificate :
20/06/2023
